TFPV and TFPL Tandem Machines, Changwon, South Korea

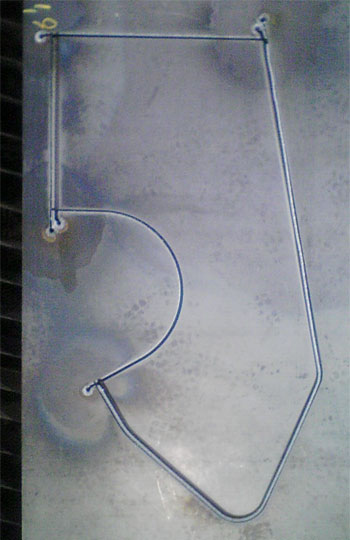

Here are some examples of root cut parts that were cut on the TFPV6084. In the photo on the left, you can see a bead of material showing the location of the two pass root cuts. [Next]

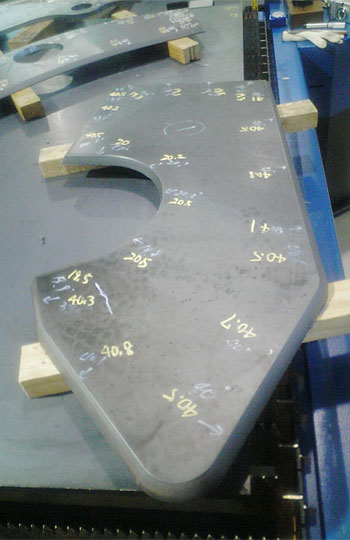

Root Cut Part from TFPV6084
Root Cut Part from TFPV6084
The machines installed at Changwon, South Korea are extend length Twister TFPV Bevel Cutting and Twister TFPL Series machines. Lengths of TFPV and TFPL Series machines can be extended in 1 meter increments up to 30 meters (about 100 feet). The standard Twister TFPL Series feature table widths of 8 or 10 feet, in 20 or 40 foot lengths, with either the 30 kW or 60 kW (300 Amp) Fine Plasma torch. For a smaller table, see the TFP3051 which has a 5 ft. x 10 ft. table and 30 kW (150 Amp) Twister Fine Plasma.

Root Twister News Release, November 14, 2006 (258 kb, 2 Pages) *
Specification is in metric units. Units in inches are approximate.
Technology in the TFP3051, TFPL Series, and TFPV Series is protected by US Patents, and other Patents Pending.
